D-Broad Wireless Power Transfer System for AGV
Achieving AGVs' 24 hour continuous operation for improving productivity.
Features
- ●Stable and highly efficient power transfer is possible even separated 40mm between coil to coil.
- ●Easy attachment to your existing AGV
- ●Maximum 60A/30A Quick Charging. *
- ●Energy Saving, Approx. 26%. *
- *When using a capasitor unit.

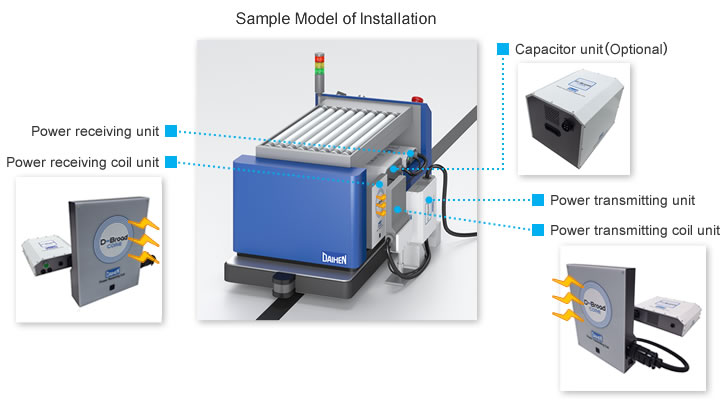

Product Configuration
Specifications
 |
 |
 |
||
| Power transmitting unit | Number of phases | 3 | 3 | 1 |
| Rated input frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Rated input voltage | AC200/220V±10% | AC200/220V±10% | AC200/220V±10% | |
| Rated input power | 4kW | 2kW | 1.3kW | |
| Required power supply capacity | 4.6kVA | 2.3kW | 1.5kW | |
| Rated power factor | 0.9 or more | 0.9 or more | 0.9 or more | |
| Weight | 7.5kg | 7.5kg | 8kg | |
| External dimensions (W×D×H) | 343×421×130mm (Excluding protrusions) |
343×421×130mm (Excluding protrusions) |
340×230×150mm (Excluding protrusions) |
|
| Power transmitting coil unit | External dimensions (W×D×H) | 291×31×396mm (Excluding protrusions) |
380×38×150mm (Excluding protrusions) |
230×45×155mm (Excluding protrusions) |
| Weight | 3kg | 3.7kg | 2kg | |
| Power receiving unit | Output voltage range | 12 to 57V | 12 to 60V | 12 to 30V |
| Maximum output current | 60A | 30A | 20A | |
| Weight | 4kg | 2.5kg | 1.6kg | |
| External dimensions (W×D×H) | 354×261×80mm (Excluding protrusions) |
350×180×60mm (Excluding protrusions) |
145×135×155mm (Excluding protrusions) |
|
| Power receiving coil unit | External dimensions (W×D×H) | 291×31×396mm (Excluding protrusions) |
380×38×150mm (Excluding protrusions) |
210×45×155mm (Excluding protrusions) |
| Weight | 3kg | 3.6kg | 1.5kg |
Optional
| 57F Capacitor unit | Capacity | 57F |
|---|---|---|
| Output voltage range | 24V±10% or 48V±10% | |
| Maximum output current | 67.2A(24VDC), 33.6A(48 VDC) | |
| Weight | 20kg | |
| External dimensions (W×D×H) | 260×346×284mm (Excluding protrusions) |
|
| 171F Capacitor unit | Capacity | 171F |
| Output voltage range | 24V±10% or 48V±10% | |
| Maximum output current | 67.2A(24VDC), 33.6A(48 VDC) | |
| Weight | 40kg | |
| External dimensions (W×D×H) | 398×500×359mm (Excluding protrusions) |
