DISOLA POWER 500HV-HEX
500HV-HEX (P500JHL2-A01)
500MV-HEX (P500JHL2-B01)
500HV1-HEX (P500JJL2-B01)

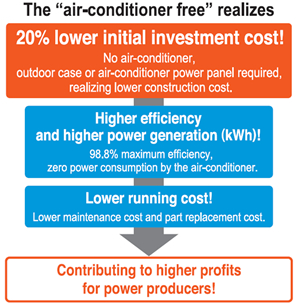

Outdoor "Air-conditioner Free"
solar inverter
Features
- ●Realizes industry-leading 98.8% conversion efficiency (1,000V input / 500kW) (*1)
（1000V入力／500kW） - ●World's first air-heat exchange (HEX) cooling system.
Great energy conservation effect compared with conventional air-conditioning systems. - ●Minimum number of replacement parts required (Long-life parts used for a main circuit. No dust-proof filter required owing to the enclosed structure.)
- ●Installable in an area subject to salt damage owing to a highly weaather-resistant stainless-steel enclosed cabinet.
*1 P500JHL2-A01
Specifications
| Type | P500JHL2-A01 | P500JHL2-B01 | P500JJL2-B01 |
|---|---|---|---|
| Output capacity | 500kW | ||
| Installation site | Outdoors | ||
| Insulation system | Transformer-less | ||
| Max. input voltage | 1000Vdc | ||
| Operating DC voltage range | 460〜850Vdc | 430〜850Vdc | 520〜950Vdc |
| Rated output voltage | 300Vac | 360Vac | |
| Frequency | 50/60Hz | ||
| Power conversion efficiency (Max. efficiency) *2 | 98.8% | 98.6% | |
| Dimensions(W)×(D)×(H) | 2400×1100×2210mm | ||
| Rough weight | 1950kg | ||
| FRT function | ○ | ||
| Recorder function | ○ | ||
*2 Auxiliary equipment loss excluded
